Terabit 2.5inch SATA MT300 and MT600 series have enhanced secure erase function, which can securely erase all data in super fast speed and make the SSD back into default setting. After which, the drive could be still used but the erased data could not be recovered by all ways. The erase function can be triggered through PIN13 by independent software or hardware button (press the button and keep this action for 2 seconds) and the erasing will start immediately and speed could reach up to 30GB/s.

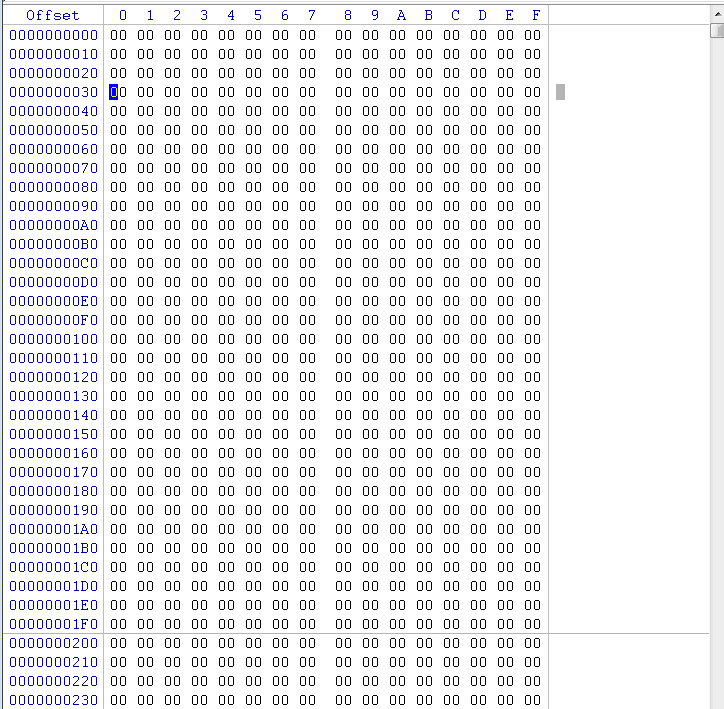

  *It shows all 00 in WinHex after erasing.


Military data erase protocols include:

NSA/CSS 9-12

NSA/CSS 130-2

DoD 5220.22-M NISPOM

DoD 5220.22-M NISPOM SuSF-1000

US Army 380-19

US Navy NAVSO P-5239-26

US Air Force AFSSI 5020


Applied to SSD Family:

· 2.5inch SATA     · 2.5inch PATA     · 1.8inch MicroSATA
